Sole plates


Sole plates are used in rail constructions to support the rails. It is common practice to reinforce concrete with steel sole plates. Depending on the load and the type of rail, a choice can be made between continuous and discontinuous support. Both types of support can be provided with bolted or welded rail clips. We supply various types of sole plates for discontinuous support. In addition to standard sole plates, we also offer custom-made sole plates. Contact us for advice.


Download these PDFs for further specifications >



1. Continuous sole plates | boltable clamps



2. Discontinuous sole plates | boltable clamps



3. Continuous sole plates | weldable clamps



4. Discontinuous sole plates | weldable clamps

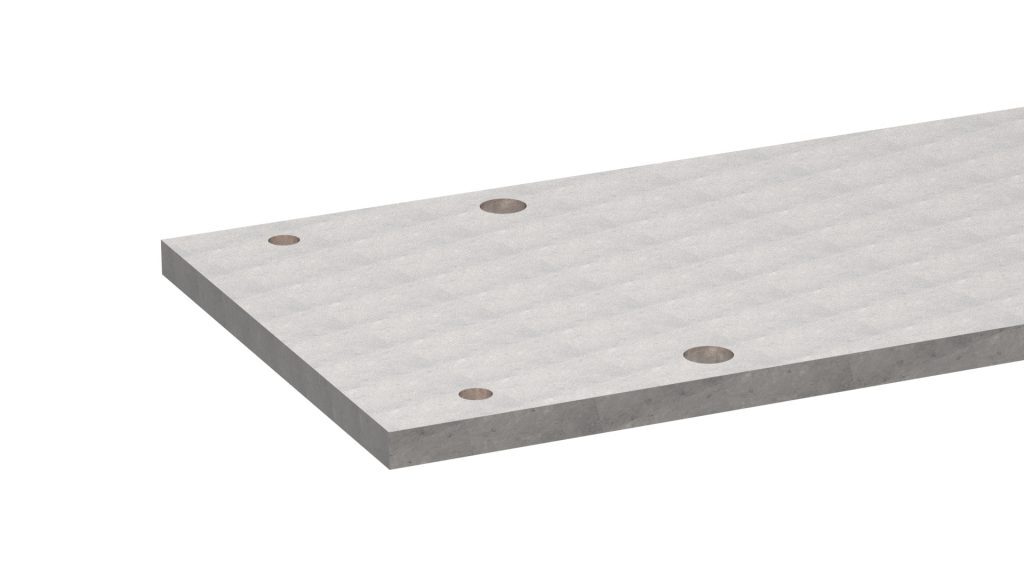

Continuous sole plates

  • Length: Standard 5,980 mm.
  • Width: Varying between 150 and 500 mm.
  • Thickness: Varying between 12 and 50 mm; the base of the rail is decisive.
  • Material: S235JR, S275JR, S355J0.

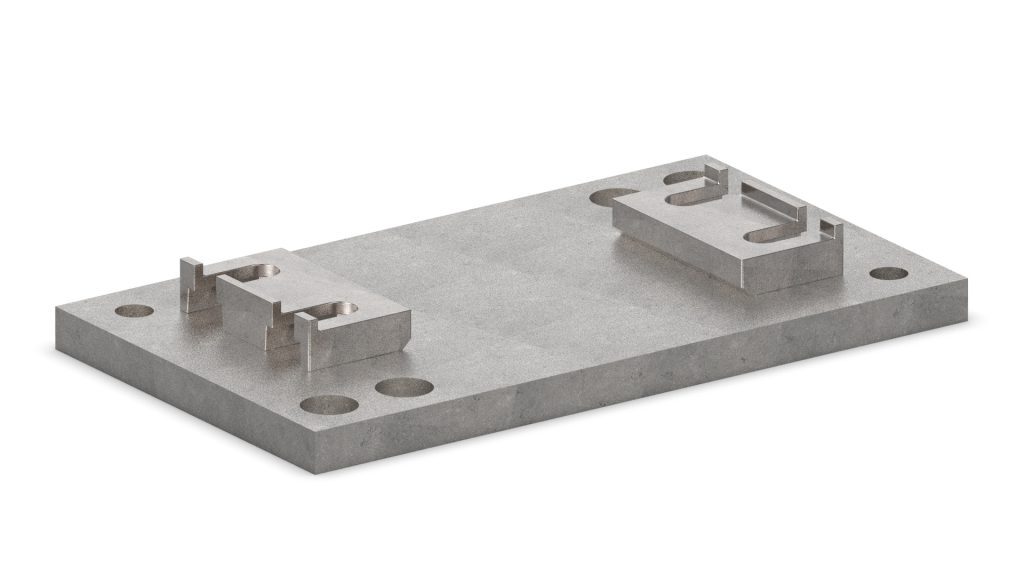

Discontinuous sole plates

  • Length: Varying between 150 and 300 mm.
  • Width: Varying between 150 and 500 mm.
  • Thickness: Varying between 12 and 50 mm, the base of the rail is decisive.
  • Material: S235JR, S275JR, S355J0.

Advantage of discontinuous application of sole plates: cost saving on material.
